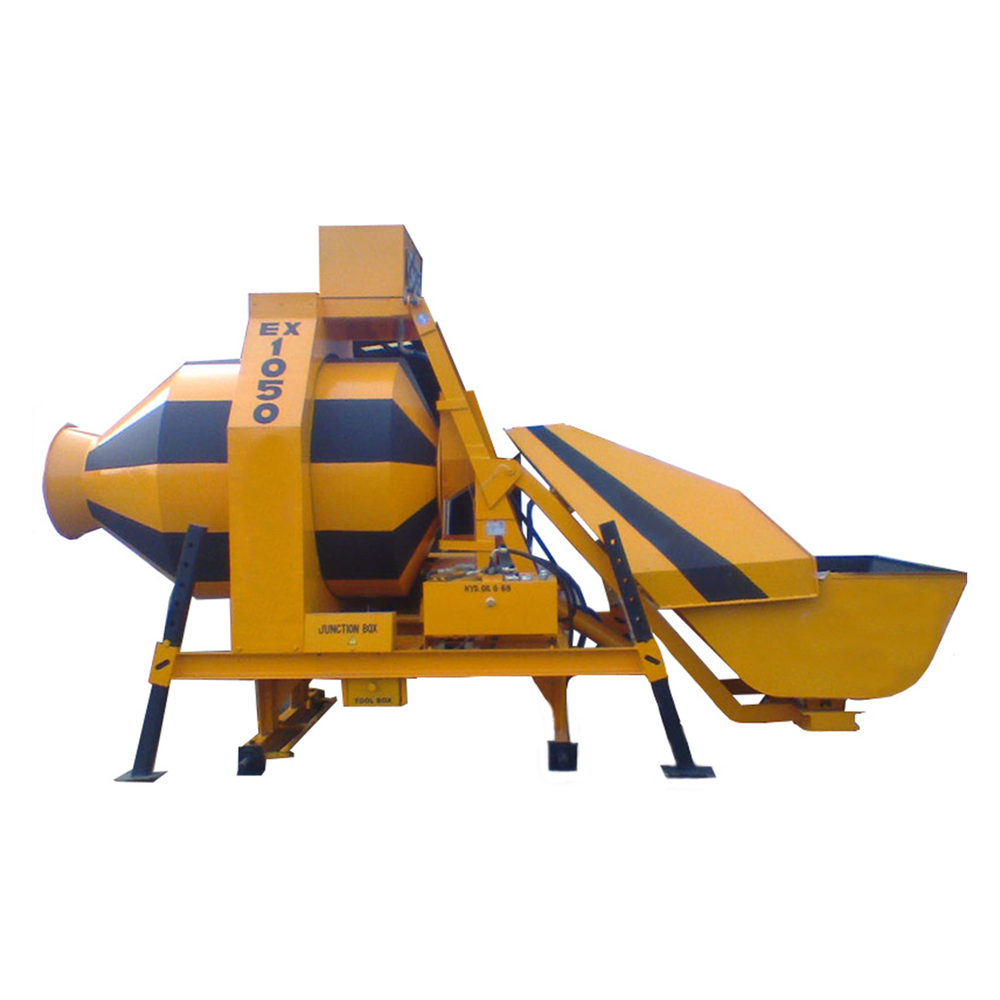

Reversible Drum Mixer Machine

Name: Reversible Drum Mixer Machine
Brand: HIPAT MACHINE TOOLS
Price: 425000 INR
Availability: InStock

Price 425000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reversible Drum Mixer Machine Specification

Frame Type
Heavy Duty Steel Frame

Operating Temperature
-10C to +50C

Drive
Chain / Gear Driven

Features
Easy Operation, Low Maintenance, High Efficiency, Reversible Mixing

Accuracy
2%

Motor Power
5 HP / 7.5 HP

Model No
RDM-10, RDM-15, RDM-20 (varies by batch size)

Frequency
50 Hz

Production Capacity
Up to 18 m3/hr

Power Rating
As per model

Voltage
415 V (3 Phase) / Diesel Option

Control System
Manual / Panel

Cooling System
Air Cooled (for engine)

Noise Level
85 dB

Lubricating System
Grease Lubrication

Machine Type
Mobile Concrete Mixer

Product Type
Reversible Drum Mixer Machine

Technology
Reversible Drum Mixing

Power Source
Electric / Diesel

Operating Type
Semi-Automatic

Power
5 HP to 10 HP (Depending on model)

Surface Treatment
Powder Coated / Painted

Dimension (L*W*H)
Varies by model (e.g. 2600 x 1800 x 2750 mm)

Weight (kg)
Approx. 1200 to 1500 kg

Color
Yellow / Custom

Usage & Applications
Construction Site Concrete Mixing

Total Connected Load
Up to 8 kW

Lifting Arrangement
Optional Hopper or Lift

Discharge Type
Reversible Drum Discharge

Tyre Size
400 x 8 mm (for mobile models)

Loading Type
Manual / Hydraulic Lift

Drum Thickness
4-6 mm

Fine & Coarse Aggregate Charging
Manual or Pneumatic as per model

Chassis
Robust & Portable

Suitable For
Construction, Road Building, Precast Plant

Working Speed
20-22 rpm (Drum Rotation)

Mixing Drum Material
Heavy Duty Steel

Water Tank Capacity
150-200 liters (approx.)

Batch Capacity
300, 500, 750 liters (as per model)

Number of Wheels
2 or 4

Engine Power (Diesel Model)
10 HP

Reversible Drum Mixer Machine Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Reversible Drum Mixer Machine

This machine comes with a special design Hooper vibrator and a centralized, well-maintained lubricating System. Its main motto is to get all the results perfectly. This machine also comes with printing features. It gets connected with USB servers and plays an important part in printing all the results.

Technical Specifications

PRODUCT DETAIL
MODEL	EX 850-E	EX 1050-E	EX 1400-E
Hopper Capacity (DRY)	850 kg	1100 kg	1400 kg
Batch Capacity (WET)	0.4 m3	0.5 m3	0.66m3 0.4m3
Machine Output/hour *	9 m3/hr	15 m3/hr	18m3/hr
Power	10 HP (7.5 kw) Elec.Motor	15 HP (7.5 kw) Elec.Motor	15 HP (11 kw) Geared Motor
Weighing Type	3 Bin	3 Bin	3 Bin
Water Dozing	Digital	Digital	Digital
Water Tank Capacity	150 Litres	200 Litres	250 Litres
Weighing System	Local Cell Based Weighing System with Digital Display
Hydraulic Pump	19 Ipm @ 170 bar	19 Ipm @ 200 bar	27 Ipm @ 200 bar
Gear Ring & Roller	Accurately Machine With Gear Cutting Operation Supported by Heavy Duty Guide Rollers
	Pneumatic Wheels (4 Nos)	Pneumatic Wheels (4 Nos)	Pneumatic Wheels (4 Nos)
Wheels 526	6'' x 16''	6'' x 16''	7'' x 19''
Jack Leveling	Pin Type (4 Nos.)	Pin Type (4 Nos.)	Pin Type (4 Nos.)
Dimensions (L x W x H)	4000 x 1650 x 2700 mm	4690 x 1890 x 2900 mm	4816 x 2000 x 3100 mm
Weight (Approx)	1830 kg	2280 kg	2950 kg
Special Attachment Fitted Each Machine	Special Design Hopper Vibrator B) Centralized Lubricating System
Optional Features	Printing System with USB B) Admixer Dozing C) With Conveyor System
