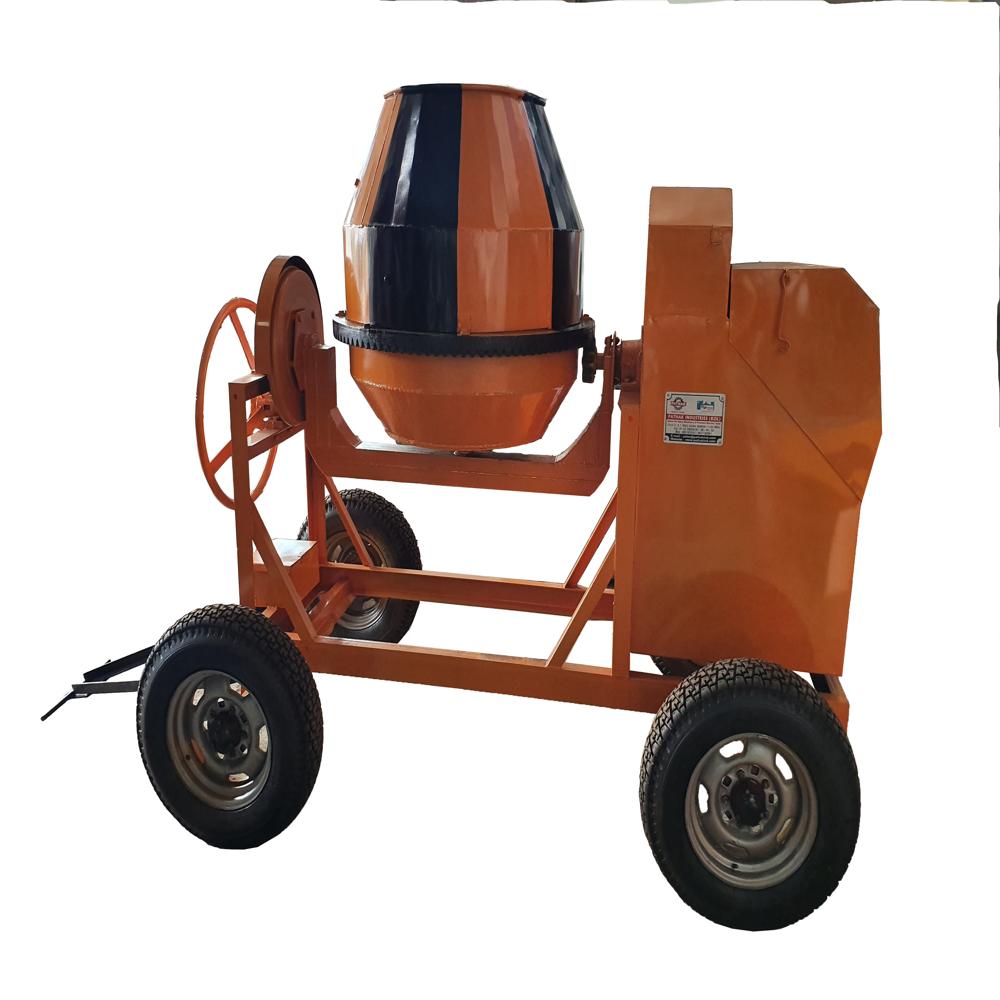

Send InquiryNon Hopper Concrete Mixture Machine
Price 123000.00 INR/ Piece
MOQ : 1 Piece
Non Hopper Concrete Mixture Machine Specification
- Production Capacity
- 7-9 m3/hr (approx)
- Motor Power
- 3 HP (Electric), 6 HP (Diesel)
- Drive
- Chain and Gear Driven
- Power Rating
- 3-6 HP depending on motor
- Control System
- Manual controls
- Noise Level
- 85 dB
- Frame Type
- Mild Steel Rigid Frame
- Machine Type
- Mixer (Non Hopper)
- Cooling System
- Air cooled (Electric) / Water cooled (Diesel)
- Frequency
- 50/60 Hz
- Voltage
- 220/440 V (Electric variant)
- Model No
- NM-200/250
- Lubricating System
- Grease Type
- Features
- Durable chassis, portable design, easy maintenance, heavy duty wheels, heavy duty mixing blades
- Accuracy
- Consistent mix quality
- Operating Temperature
- -10C to 50C
- Product Type
- Non Hopper Concrete Mixture Machine
- Technology
- Manual Feeding Mechanical Mixing
- Power Source
- Electric Motor / Diesel Engine
- Operating Type
- Semi-Automatic
- Power
- 3 HP (for Electric Motor) / 6 HP (for Diesel Engine)
- Pressure
- Normal atmospheric pressure, not applicable for non-hydraulic mixing
- Surface Treatment
- Painted with anti-corrosive coating
- Dimension (L*W*H)
- 2600 x 1300 x 1800 mm (approx)
- Weight (kg)
- 1100 kg (approx)
- Color
- Yellow / Blue / Custom
- Usage & Applications
- Homogeneous mixing of concrete at construction sites, road works, foundations, etc.
- Portability
- Towable by handle or tractor
- User Safety
- Emergency stop switch provided
- Assembly Type
- Pre-assembled, ready for operation
- Discharge System
- Manual tipping drum
- Spare Parts Availability
- Yes, easily available in market
- Chassis Construction
- Heavy Duty Steel Angle and Channel
- Batch Time
- 2-3 minutes
- Working Speed
- 20-22 RPM (Mixing Drum)
- Blade Material
- Cast Iron
- Drum Material Thickness
- 3 mm (approx)
- Drum Volume
- 300 liters (gross), 200-250 liters (mixing)
- Number of Wheels
- 2 or 4 (optional for mobility)
- Maintenance Requirement
- Low, periodic greasing recommended
Non Hopper Concrete Mixture Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 10 Days
About Non Hopper Concrete Mixture Machine
Non Hopper Concrete Mixture machine is a semi automatic machine with almost all features pre installed in it. This machine of ours is very portable to use and transport. Non Hooper concrete mixer machine has a capacity of around 1600 liters. We provide this machine with perfect validations. This is one of the best machines one should opt for.
